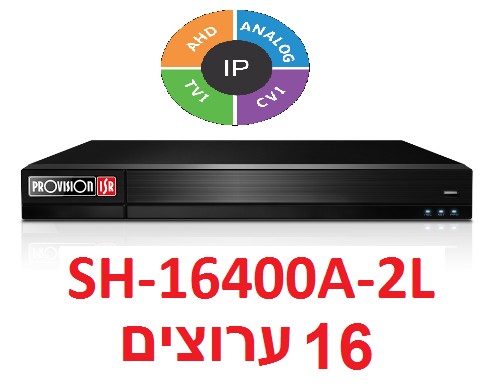

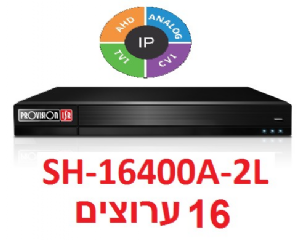

DVR ל 16 מצלמות 2 מגה PROVISION דגם SH-16200A-2L

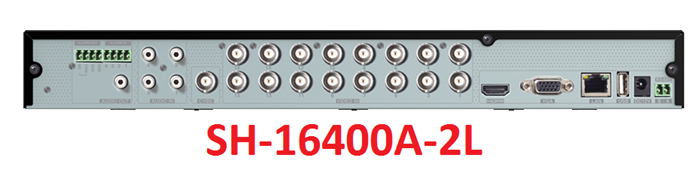

SH-16400A-2L

• Video:

  Input: 16 Channel AHD/ CVI / TVI / Analog (BNC) + 4 Channel IP (Over Network)

  Output: VGA: 1280x1024

  HDMI: 1920x1080

  CVBS (Can be used as Spot)

• Recording:

  16CH AHD / CVI / TVI / Analog + 4CH IP

  AHD/CVI/TVI: 1080P Lite


  FPS: 400 (PAL) / 480 (NTSC)

  Max.25/30FPS Per Channel

  Resolution:960x1080 (PAL/NTSC)

  AHD/CVI/TVI: 1080P Lite

  FPS: 400 (PAL) /480 (NTSC)

  Resolution:960x1080 (PAL/NTSC)

  AHD/CVI/TVI: 720P

  FPS:400 (PAL) / 480(NTSC)

  Resolution:1280x720 (PAL/NTSC)

  Analogue: 960H

  FPS: 400(PAL) / 480(NTSC)

  Resolution: 960x575 (PAL) / 960x480 (NTSC)

• IP: 4ch up to 2 Mega-Pixel:

  Resolution: 1080P

  FPS: 100(PAL) / 120(NTSC)

  Playback:

• 16 Channel Simultaneously

• Audio:

  Input: 1 Channel (RCA)
  Output: 1 Channel (RCA)
  2 Way audio

• Storage:

  1 x SATA (Up to 8TB)

• USB Port:

  2 x USB2.0

• Network:

  RJ-45: 100Mbps

• PTZ / Keyboard:

  1 x RS485
  Protocol: CoC/Pelco DP/Samsung/Visca (IP Over ONVIF)
