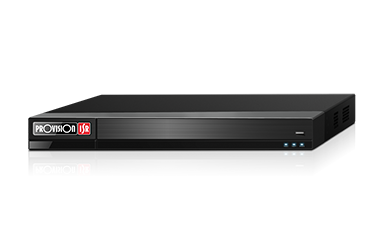

DVR 16 CH PROVISION MODEL SA16200AHD-2(1U)+

SA-16200AHD-2
Video:
Input: 16CH Standard BNC + 8CH IP (Over Network)

Output: HDMI, VGA (1024x768), CVBS

Recording:

16CH AHD/TVI/Analogue + 8CH IP

AHD/TVI: 1080P

FPS: 200 (PAL) / 240 (NTSC)

Resolution: 1920x1080 (PAL/NTSC)

AHD/TVI: 1080P Lite

FPS: 400 (PAL) / 480 (NTSC)

Resolution: 928x960 (PAL/NTSC)

(Digitally upscaled to 1920x1080)

AHD/TVI: 720P

FPS: 400 (PAL) / 480 (NTSC)

Resolution: 1280x720 (PAL/NTSC)

Analogue: 960H

FPS: 400 (PAL) / 480 (NTSC)

Resolution: 960x575 (PAL) / 960x480 (NTSC)

IP: 1080P

FPS: 200 (PAL) / 240 (NTSC)

Resolution: 1920x1080 (PAL/NTSC)

(*3MP, FPS: 150 (PAL) / 180 (NTSC))

Playback:

8 Channel Simultaneously

Audio:

Input: 4 Channel (RCA)
Output: 1 Channel (RCA)
2 Way audio

Storage:

2 x SATA (Up to 6TB)

Network:

RJ-45: 100Mbps

Alarm:

Input: 4 Channel
Output: 1 Channel

USB Port:

2 x USB2.0

PTZ / Keyboard:

1 x RS485
Protocol: CoC/Pelco DP/Samsung/Visca (IP Over ONVIF)
