| CAMERA |
| Image Sensor |
2MP CMOS Image Sensor |
| Effective Pixels |
1920(H)*1080(V) |
| Min. Illumination |
0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time |
1/25(1/30)s to 1/50,000s |
| Lens |
2.8mm, 3.6mm, 6mm optional, Angle of View: 103°(2.8mm), 82.2°(3.6mm), 54°(6mm) |
| Lens Mount |
M12 |
| Adjustment Range |
Pan: 0 - 360°, Tilt: 0 - 180°, Rotation: 0 - 360° |
| Video Frame Rate |
1080p@25fps/1080p@30fps |
| Video Output |
1 Analog HD output |
| Synchronization |
Internal Synchronization |
| S/N Ratio |
More than 62 dB |
| Signal System |
PAL/NTSC |
| GENERAL |
| Operating Conditions |
-40 °C - 60 °C (-40 °F - 140 °F) Humidity 90% or less (non-condensing) |
| Power Supply |
12 VDC±15% |
| Power Consumption |
Max. 4W |
| Weather Proof |
IP66 |
| IR Range |
Up to 20m |
| Dimension |
Φ70×149.5mm (Φ2.76”×5.89”) |
| Weight |
400g |
| ADDITIONAL INFO |
| Camera type |

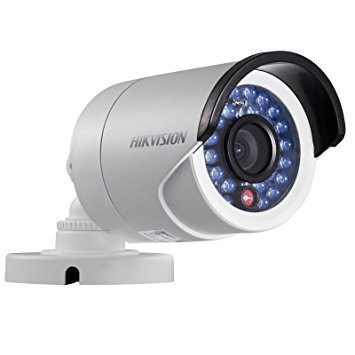

Bullet |
| Type of camera lens |
Fixed |
| Type of IR sensor |
Standard |
| Wide Dynamic Range |
No |
