| Video/Audio Input |
|---|
|
| Audio Input: |
| |
1-ch |
|
| Video Compression: |
| |
H.264,H.264+ |
|
| Analog and HD-TVI video input: |
| |
16-ch,BNC interface (1.0Vp-p, 75 Ω)connection |
|
| Supported camera types: |
| |
Support HDTVI input: 3 MP, 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz, 720P/50Hz, 720p/60Hz
Note: The 3 MP signal input is only available for the first channel of DS-7204HQHI-F1/N, the first 2 channels of DS-7208HQHI-F1/N, and the first 4 channels of DS-7216HQHI-F1/N.
Support AHD input: 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz
support CVBS input |
|
| IP Video Input: |
| |
2-ch Up to 2MP resolution |
|
| Video Input Interface: |
| |
BNC (1.0 Vp-p, 75Ω) |
|
| Audio Compression: |
| |
G.711 |
|
| Audio Input Interface: |
| |
RCA (2.0 Vp-p, 1 kΩ) |
|
| Two-way Audio: |
| |
1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input) |
| Video/Audio Output |
|---|
|
| CVBS Output: |
| |
1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704x576,NTSC:704x480 |
|
| HDMI/VGA Output: |
| |
HDMI: 1-ch,4K(3840×2160)/30Hz,2K(2560×1440)/60Hz, 1920×1080/60Hz, 1280×1024/60Hz,1280×720/60Hz,1024 ×768/60Hz
VGA:1-ch,2K(2560×1440)/60Hz,1920×1080/60Hz,1280×1024/60Hz,1280×720/60Hz,1024×768/60Hz |
|
| Recording resolution: |
| |
When 1080p Lite mode not enabled: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF;
When 1080p Lite mode enabled: 3 MP/1080p lite/720p/VGA/WD1/4CIF/CIF |
|
| Frame Rate: |
| |
Main stream:
When 1080p Lite mode not enabled:
For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@12fps
For 1080p stream access: 1080p/720p@12fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
3 MP/1080p lite/720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) |
|
| Video Bit Rate: |
| |
32 Kbps-6 Mbps |
|
| Stream Type: |
| |
Video/Video&Audio |
|
| Audio Output: |
| |
1-ch RCA(Linear, 1kΩ) |
|
| Dual Stream: |
| |
Support |
|
| Playback Resolution: |
| |
3 MP/1080p/720p/VGA/WD1/4CIF/CIF |
|
| Synchronous Playback: |
| |
16-ch |
| Network management |
|---|
|
| Remote connections: |
| |
128 |
|
| Network protocols: |
| |
TCP/IP, PPPoE, DHCP, Hik Cloud P2P,DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS,ONVIF |
| Hard Disk Driver |
|---|
|
| Interface Type: |
| |
1 SATA Interface |
|
| Capacity: |
| |
Up to 6 TB capacity for each disk |

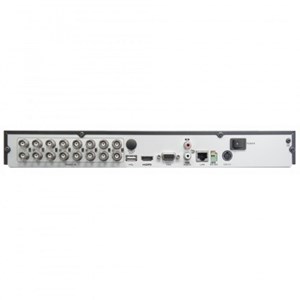

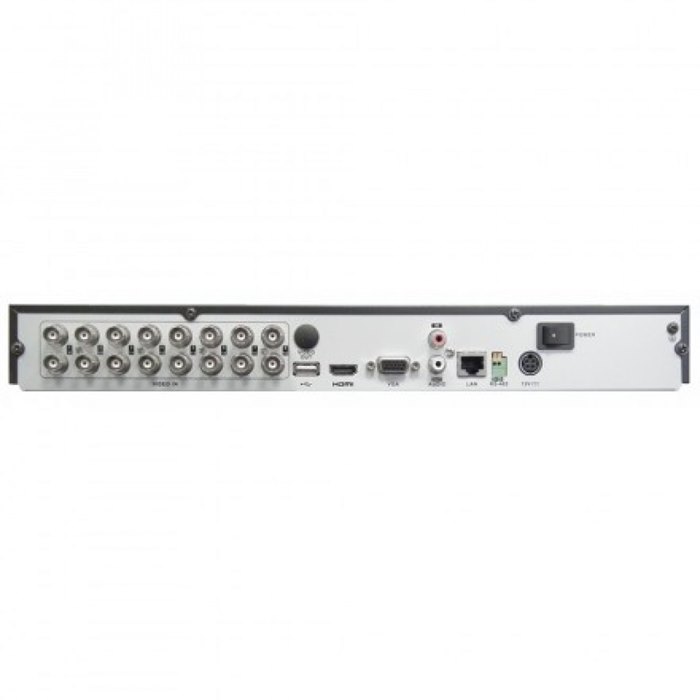

| External Interface |
|---|
|
| Network Interface: |
| |
1; 10M / 100M self-adaptive Ethernet interface |
|
| USB Interface: |
| |
1 USB 2.0 Interface & 1 USB 3.0 Interface |
| General |
|---|
|
| Power Supply: |
| |
12V DC |
|
| Consumption: |
| |
≤ 30W(without hard disks) |
|
| Working Temperature: |
| |
-10 ºC ~+55 ºC (14 ºF ~ 131 ºF) |
|
| Working Humidity: |
| |
10% ~ 90% |
|
| Chassis: |
| |
Standalone 1U chassis |
|
| Dimensions: |
| |
315 × 242 × 45 mm
(12.4 × 9.5 × 1.8 inch) |
|
| Weight: |
| |
≤2 kg(4.4lb) |
