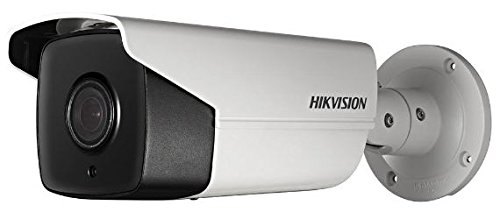

מפרט טכני מצלמת צינור 3MP TVI HIKVISION |
|---|
|
| Image Sensor: |
| |
3MP CMOS Image Sensor |
|
| Signal System: |
| |
PAL/NTSC |
|
| Effective Pixels: |
| |
2052(H)*1536(V) |
|
| Min. Illumination: |
| |
0.01 Lux @ (F1.2,AGC ON), 0 Lux with IR |
|
| Shutter Time: |
| |
1/25(1/30) s to 1/50,000 s |
|
| Lens: |
| |
3.6mm, 6mm, 8mm, 12mm, 16mm optional
Angle of View: 67.8°(3.6mm), 44.6°(6mm), 31.6°(8mm), 20.2°(12mm), 15.8°(16mm) |
|
| Lens Mount: |
| |
M12 |
|
|
| Adjustment Range: |
| |
Pan: 0° - 360°; Tilt:0° - 90°; Rotate: 0° - 360° |
|
| Day& Night: |
| |
IR cut filter with auto switch |
|
| Video Frame Rate: |
| |
1920 ×1536@18fps |
|
| HD Video Output: |
| |
1 Analog HD output |
|
| Synchronization: |
| |
Internal Synchronization |
|
| S/N Ratio: |
| |
More than 62 dB |
| Menu |
|---|
|
| D/N Mode: |
| |
Color/BW/SMART |
|
| Auto White Balance: |
| |
Auto/MWB |
|
| BLC: |
| |
Support |
|
| AGC: |
| |
Support |
|
| Language: |
| |
English/Chinese |
|
| Function: |
| |
Digital noise reduction, Mirror, SMART IR |
| General |
|---|
|
| Operating Conditions: |
| |
-40 °C - 60 °C (-40 °F - 140 °F)
Humidity 90% or less (non-condensing)
|
|
| Power Supply: |
| |
12 VDC±15% |
|
| Power Consumption: |
| |
Max. 5W |
|
| Weather Proof: |
| |
IP66 |
|
| IR Range: |
| |
Up to 80m |
|
| Communication : |
| |
Up the coax
Protocol: HIKVISION-C(Coaxitron)
|
|
| Dimension: |
| |
86.7mm×81.6mm×226mm (3.41″×3.23″×8.67″) |
|
| Weight: |
| |
Approx. 680g (1.5lb) |
